CB class moulded case dual transfer switch automatic switch with
GB/T 14048.11 standard

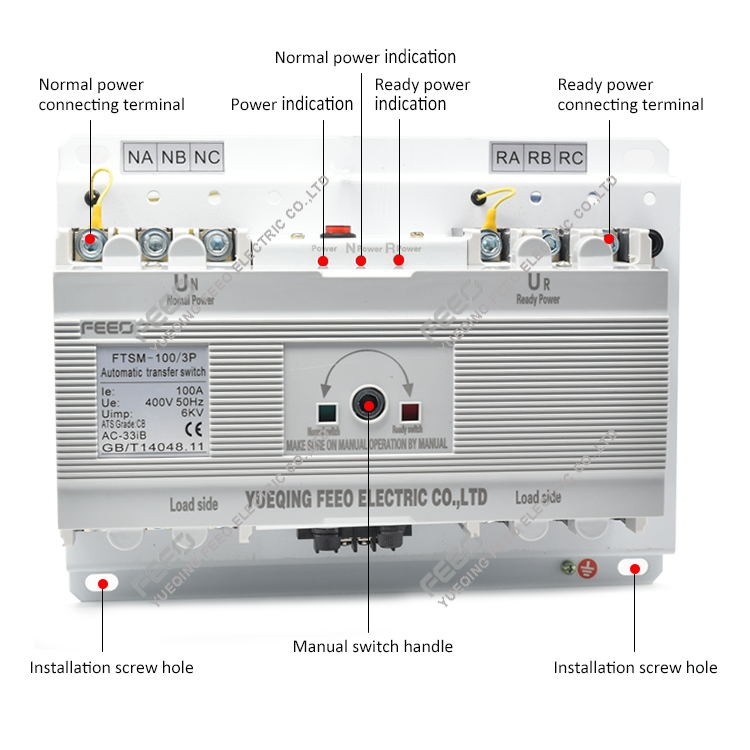

FTSM series automatic transfer switch are mainly composed of power
conversion actuator, circuit breaker and controller. It is able to
actuate the automatic transfer between the normal power and reserve
power, requiring no manual operation. This switch conforms to the
clauses stipulated in the GB/T14048.11 Automatic transfer switching
equipment. It is operating mechanism has reliable electric and
mechanical interlock to prevent the normal power and reserve power
being switched on at the same time.
♦ Technical Data
| Model | FTSM-63 | FTSM-125 | FTSM-250 | FTSM-400 | FTSM-630 |
| Standard | GB/T 14048.11 |
| Electrical Characteristic Parameter |
| Shell Frame Current | 63A | 125A | 250A | 400A | 630A |
| Rated Current In(A) | 10,16,20,25, 32,40,50,63 | 25,32,40,50, 63,80,100,125 | 100,125,140,160, 180,200,225,250 | 225,250,315,350 ,400 | 400,500,630 |
| Rated Operating Voltage Ue | AC 400V 50Hz |
| Rated Insulation Voltage Ui | AC 500V | AC 800V | AC 800V | AC 800V | AC 800V |
| Rated Impulse Withstand Voltage Uimp | 6kV | 8kV | 8kV | 8kV | 8kV |
| Poles | 3P , 4P |
| Life (times) | 6000 | 6000 | 6000 | 4000 | 3000 |
| Use Category | AC-33iB |
| Electrical Level | CB Class |
| Protection Level | IP30 |
| Control Characteristic Parameter |
| Rated Control Supply Voltage Us | AC 230V 50Hz |
| Switching Time | ≤3s | ≤3s | ≤3s | ≤4s | ≤4s |
♦ Installation
When installing wiring, normal power N should be access to normal
power supply circuit breaker QN, ready
power R should be access to ready power supply circuit breaker QR.
When QN and QR is 4 poles circuit
breaker, wiring mode according to the wiring diagram, which QN and
QR's 1, 3, 5 are three-phase ( A, B, C )
into line terminals, 2, 4, 6 are three-phase outgoing line
terminals, 7 is zero line (N) into line terminal, 8 is
zero line outgoing line terminal. If the use of 3 poles circuit
breaker, the normal power N's zero line (NN) and
ready power R's zero line (NR) must be respectively received on 3
poles special connection zero line terminal.
Specific see wiring diagram. Dual power transfer switch automatic
controller's work power supply circuit breaker
QN and QR's into line terminal A and zero line N, in the automatic
power switch installation, wiring process,
Do not let the local controller to forget to connect the signal
line, touch off or short circuit and so on,
otherwise can not work.
